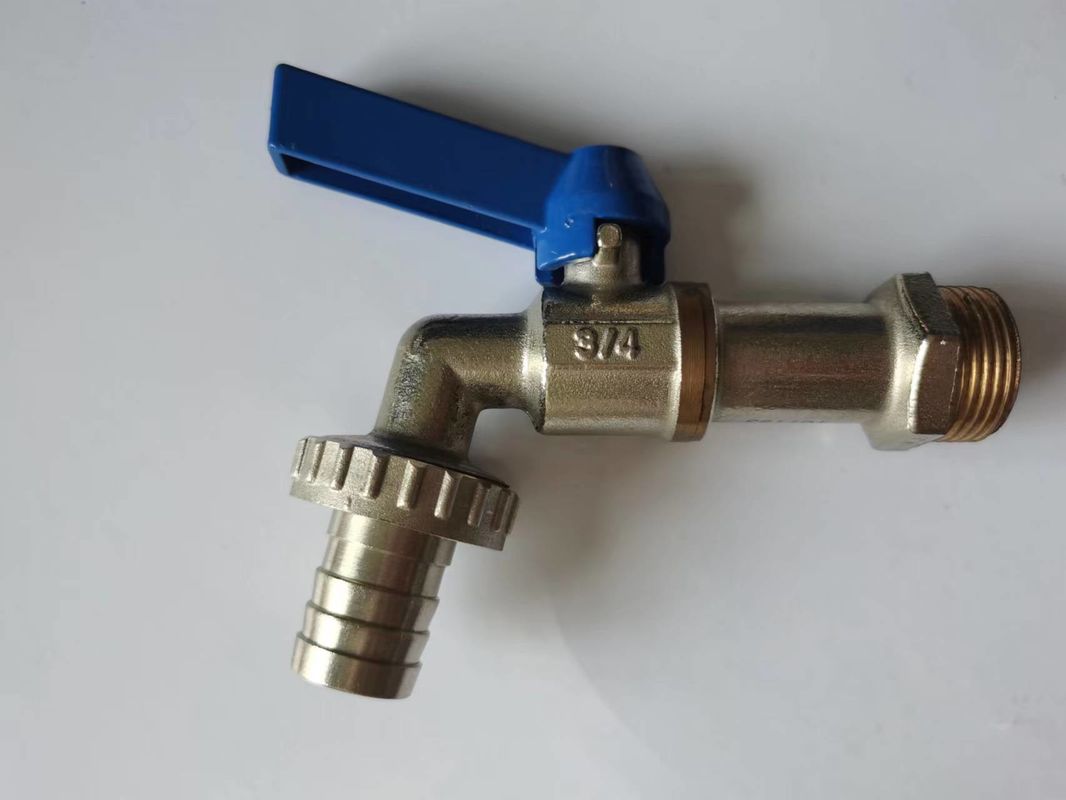

Customized Brass Bibcock Taps BC2003 Normal Pressure Max.25bar
Product Details:
| Place of Origin: | Zhejiang Taizhou |
| Brand Name: | Taizhou XingNuo |
| Model Number: | BC2003 |
|
Detail Information |
|||
| Name: | Brass Bibcock Taps | Pressure: | Max.25bar |
|---|---|---|---|
| Normal Temperature: | -10~110°C | Threaded: | M/F ISO228/1 |
| Processing Technic: | Sand Blast And Nickel Plated | OEM: | Customized |
| High Light: | Customized Brass Bibcock,Brass Bibcock Taps,Bibcock Taps |
||
Product Description
Specification
- forged brass body
- sand blast and nickel plated
- nominal pressure:Max.25bar
- temperature:-10~100°C
- threaded F/F ISO228/1
- 100% leak tested
Mondle NO:BC2003
| NO. | PART NAME | MATERIAL |
| 1 | BODY | BRASS |
| 2 | SEAT | PTFE |
| 3 | BALL | BRASS |
| 4 | BODY | BRASS |
| 5 | STEM | BRASS |
| 6 | GLAND | PTFE |
| 7 | PRESSING NUT | BRASS |
| 8 | HANDLE | IRON |
| 9 | GASKET | IRON |
| 10 | NUT | IRON |
| 11 | CAP | BRASS |
| 12 | GASKET | NBR |
| 13 | SEPARATOR | ABS |
| 14 | OUTLET | BRASS |
1) Fast Material Supply.
2) Every valve put through a six-step QC process before delivery.
Material Control, Machining Quality Control, In-coming Material Inspection, Assembly Line Quality Control, Leakage Testing, Final Inspection Before Delivery.
3) 100% Leakage Test.
4) Strictly and perfect management in production.
5) Guaranteed Quality In Competitive Price.
6) On-time Delivery.
7) Complete R&D facilities and Excellent team.
8) Annual R&D projects reach the number of 100.
9) Have rich experience and strong ability to develop new products.
